El tire strip cutter is designed to cut the sidewall of waste tires into rubber strips, which is the second process in the waste tire recycling line. The handling capacity is 1000kg/h and the width of rubber tire strips is 3-5cm, adjustable. It can handle scrap tyres with a size of ≤1200mm, and the tire can be steel wire tires, nylon tires, semi-steel tires and other types. After tire strips cutting, it’s convenient for subsequent processing such as block cutting, crushing and rubber powder making.
If you want to process bigger tires, we can customize the tire strips cutting machine to meet your demands. Are you interested? If yes, come and contact us now for more rubber tire recycling information!
Highlights of automatic tire strip cutter machine
It can process up to 1000kg of tires per hour, which has high cutting efficiency.
This tyre strip cutter is equipped with high-strength alloy knives, which can be repeatedly ground for use and have a long life.
The machine supports 3-5cm rubber strip width adjustment to meet different subsequent processing requirements.
tiene un small footprint, operación sencilla, and one person can complete the operation, suitable for small and medium-sized recycling factories to put into production quickly.
For large-sized tires (such as engineering tires, truck tires), we can provide larger models of customized services.
Parameters of waste tire strip cutting machine
| Nombre de la máquina | Tire strip cutter |
| Capacidad | 1000kg/hora |
| Specification of cutting strip | 3-5cm wide strip |
| Motor power | 5.5KW |
| Motor speed | 45r/min |
| Machine size(L*W*H) | 1.3m*0.8m*1.65m |
| Peso | 850kg |

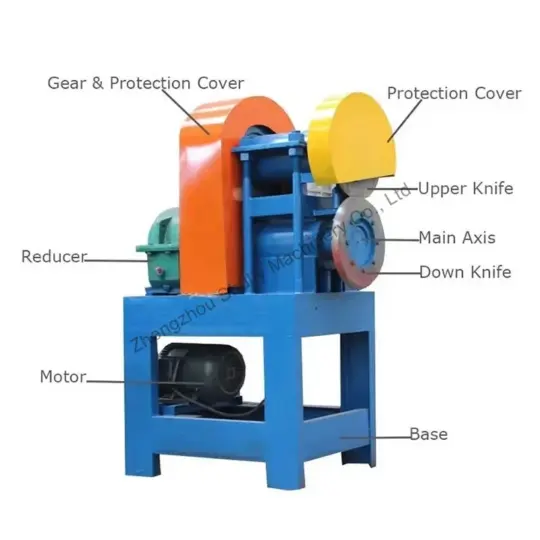

Structure of tire strip cutter
This equipment is mainly composed of frame, motor, reducer, double-blade cutting device and adjustment system.
Its core components are two high-hardness disc blades, fixed on both sides of the rotating shaft. By using the tire itself to rotate with the knife, our tire strips cutting machine performs a stable and continuous cutting operation. The structural design is reasonable, making it easy to maintain and operate.
Applications of rubber tyre strip cutter
Our tire strip cutter machine can process various tires, such as car tires, truck tires, steel wire tires, nylon tires and so on. It’s widely used in:
- Scrap tire recycling plant
- Recycled rubber granules/powder production plant
- Environmental resource treatment enterprises
- Tire retreading or pretreatment equipment integrators
If you are looking to convert scrap tires into economic value, contact us at any time!

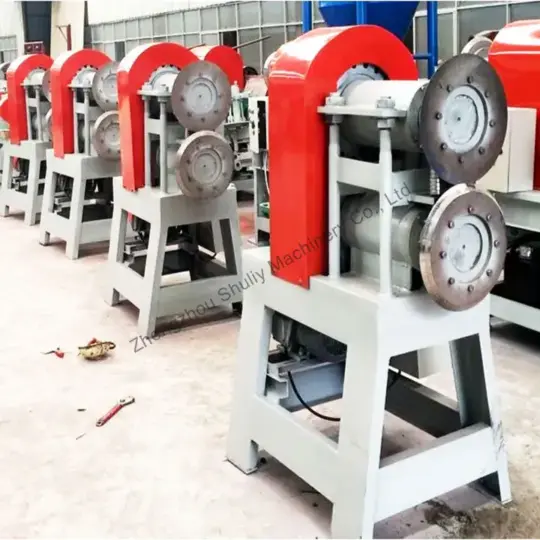

Shuliy: a reliable tire strip cutter factory
As a professional manufacturer of recycling machinery, Shuliy Machinery has been working deeply in the field of waste tire recycling equipment for many years. Among many manufacturers, we are trustworthy for some reasons:
One-stop service: For tire recycling, we have tire bead cutter, tire strips making machine, tire block cutter, rubber powder machine, and so on. It’s convenient for customers to flexibly combine and select according to their needs, and reduce the difficulty of purchasing and communication costs.
Comprehensive services available: We provide OEM customization, on-site installation and commissioning, operation training and after-sales technical guidance to help customers quickly and efficiently put into operation.
Factory visit: We support multi-language services and welcome you to visit our factory at any time. When you plan to visit our factory, we provide airport pickup, route arrangement (according to the customer’s arrangement), factory workshop visit and so on.
Contact us for a quote now!
If you are looking for a cost-effective, stable and durable waste tire strip cutting machine with support for customization, please feel free to contact us for a detailed quotation plan. Please provide your target production, neumático type and size, we will recommend the most suitable model and provide the shipping cost and delivery time information.
