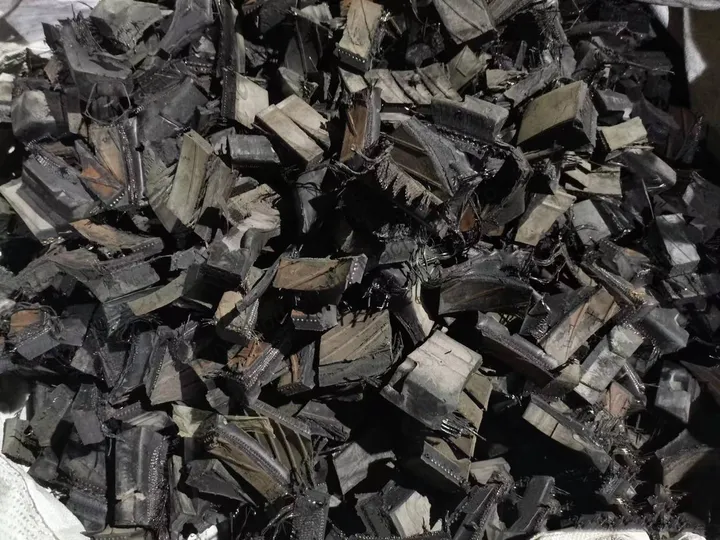

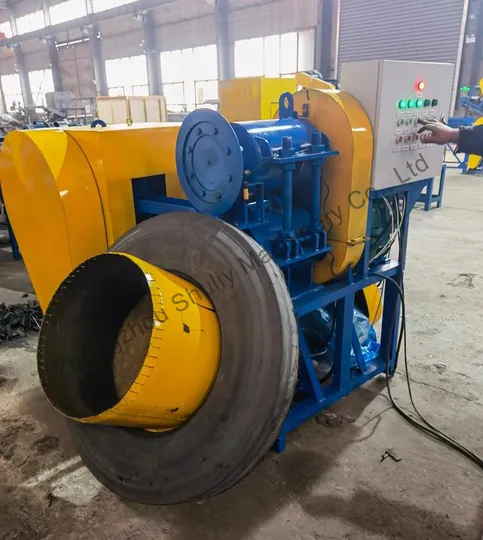

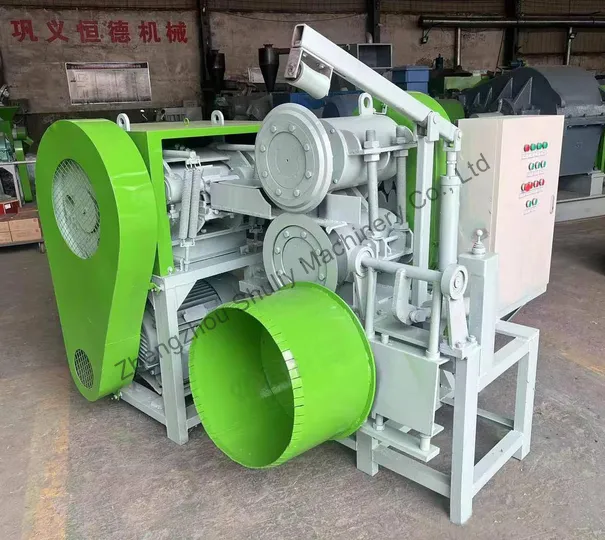

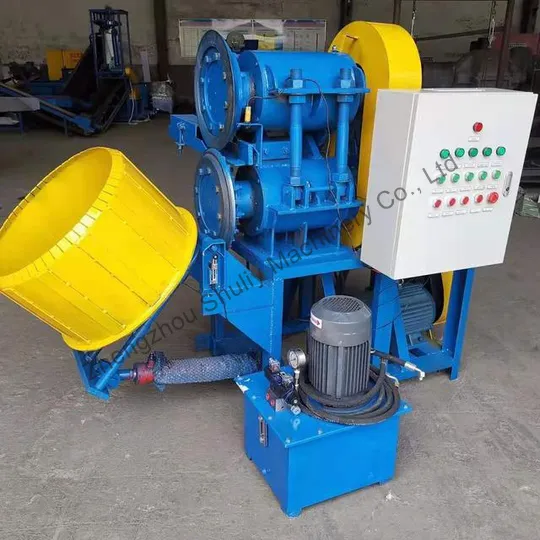

Shuliy automatic tire block cutting machine integrates tire strips and cutting, processing waste whole tires with a diameter of ≤1200mm into 50-80mm blocks. The final products can be directly used for rubber grinding. The tyre block cutter can handle 20-30pcs of whole tyres per hour, and is widely used in tyre recycling plants. This machine helps customers achieve tire processing to a “grindable” state at a lower cost, particularly suitable for start-up or budget-constrained recycling plants.
Key advantages of automatic tire block cutting machine
- Fully automatic operation, reducing reliance on manual labor
- Integrated strip and block cutting design with compact structure
- Consistent 50-80mm tyre block dimensions, ideal for subsequent grinding
- Low investment cost with a short payback period
- Suitable for diverse tire recycling scenarios
Technical parameters of rubber tire block cutting machine
- Function: Cut whole tire into blocks
- Tire diameter: ≤1200mm
- Capacity: 20–30 pcs/hour
- Output size: 50–80mm
- Power: 40.5 kW
- Voltage: 380V / 50Hz
- Dimension: 2000 × 1800 × 1580 mm
- Weight: 1800 kg
Why choose a fully automatic tire block cutting machine?
Compared to the traditional multi-device approach of “cutting into rings → cutting into strips → cutting into chunks,” this tyre block cutter demonstrates significant advantages in actual recycling projects:
- One machine performs two processes, reducing equipment investment
- Minimize factory footprint for simpler layout
- Reduce manual handling and material transfer
- Shorten production flow with fewer potential failure points
- Ideal for startup tire recycling projects and small rubber powder lines
An exceptionally cost-effective choice for customers seeking low-risk entry into the tire recycling market.

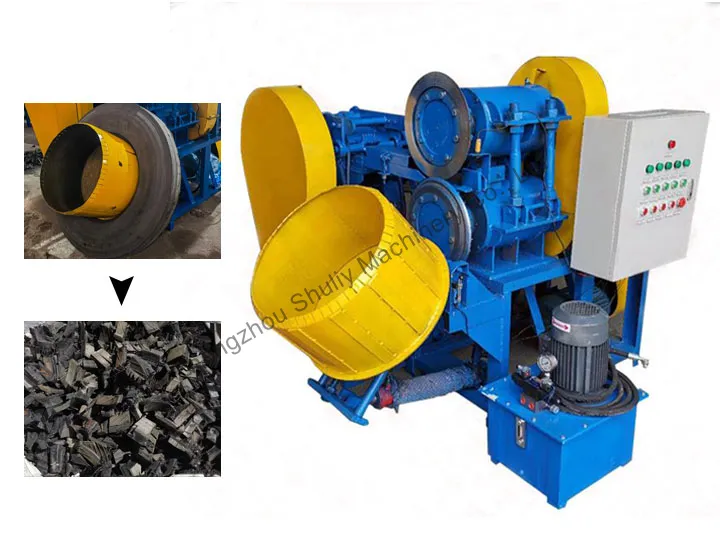

Working principle of waste tyre block cutter
After the entire tire enters the equipment, the system completes the following processes through automatic feeding and cutting mechanisms:
- Once the entire tire is in position, it automatically moves into the cutting area through automated operation.
- The tire is first processed into strips, then automatically cut into uniform blocks. Both steps can occur simultaneously.
- Output dimensions are controlled between 50–80mm.
- The final tire blocks can be directly conveyed to the rubber powder mill without requiring secondary cutting.
Applications of tire strip and block cutting machine
This fully automatic tire block cutting machine is widely used in:
- Small-scale rubber powder production lines
- Semi-automatic tire recycling projects
- Startup recycling plants
- Front-end processing stages for tire grinding
The intended investors include:
- Budget-limited tire recycling entrepreneurs
- Factories looking to minimize equipment count
- Customers pursuing rapid return on investment over ultra-high capacity
- Projects planning to start with “small-scale trial production”
If your goals are:
👉 Quick production launch + Cost control + Future scalability
This tire recycling equipment is an excellent fit for you.
Why choose Shuliy tire recycling equipment?
- Provide standalone and complete line solutions
- Extensive experience in exporting tire recycling equipment
- Mature equipment design with stable operation
- Support for equipment selection, technical guidance, and after-sales service
Get price & tire recycling solution!
If you’re seeking a low-budget tire cutting machine for direct grinding, contact us for:
- Equipment price
- Operational videos
- Capacity and configuration recommendations
- Recycling solutions tailored to your local market
