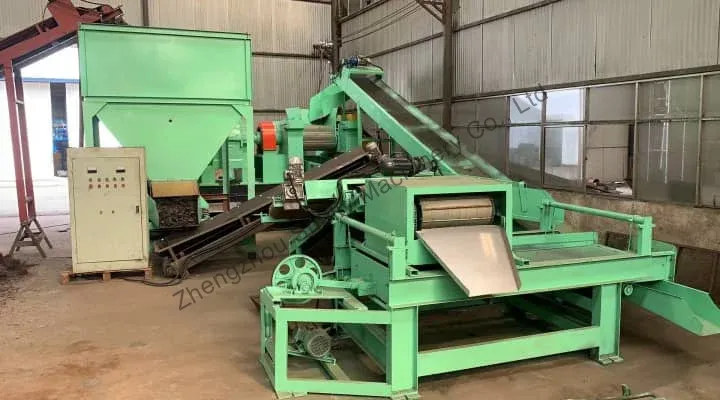

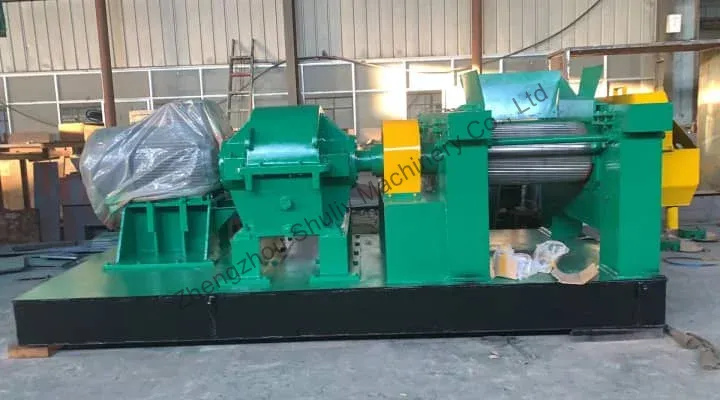

Shuliy rubber powder machine processes 30-100mm tire blocks into 5-40 mesh rubber powder, while simultaneously efficiently separating the steel wire and nylon fiber. It combines the functions of crushing and sieving, as the key equipment in the waste tire recycling line.
This series of rubber crusher machine models is diverse, with processing capacities ranging from 80 to 2300 kg per hour, meeting different capacity needs. After crushing and screening, the rubber powder can be used in the production of recycled rubber, rubber floor tiles, runway materials and so on. Interested? Welcome to contact us for more details.

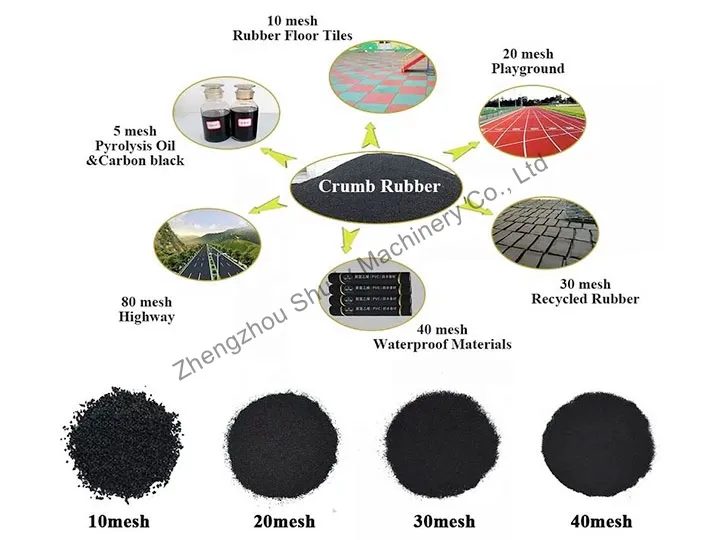

Final products and applications of rubber powder machine
Our rubber granule machine can make rubber powder with sizes of 10 mesh, 20 mesh, 30 mesh, 40 mesh, etc. The final products can be used to make:
- Pyrolusis oil & carbon black
- Rubber floor tiles
- Playground
- Recycled rubber
- Waterproof materials
- Highway
Some applications are listed above for reference. As you can see, investing in waste tire recycling is a profitable project. You can contact us at any time for more information about tire recycling businesses.
Advantages of crumb rubber powder crusher machine
- Compared with the traditional model, this rubber powder machine is designed with energy saving and environmental protection, saving up to 1/3.

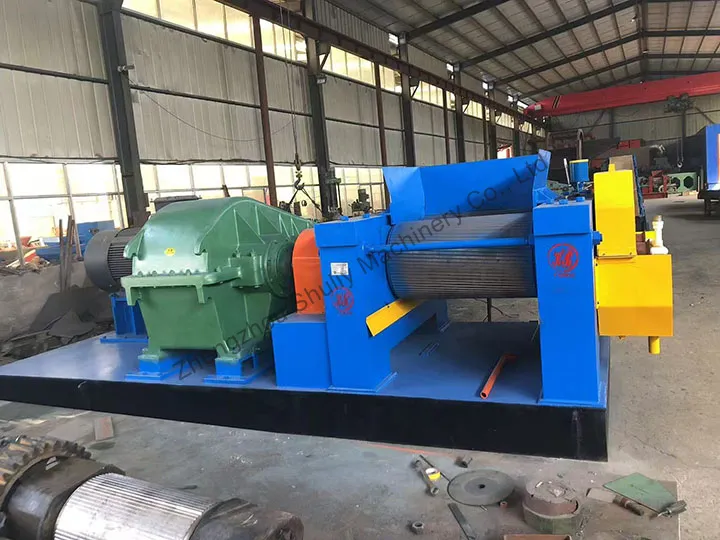

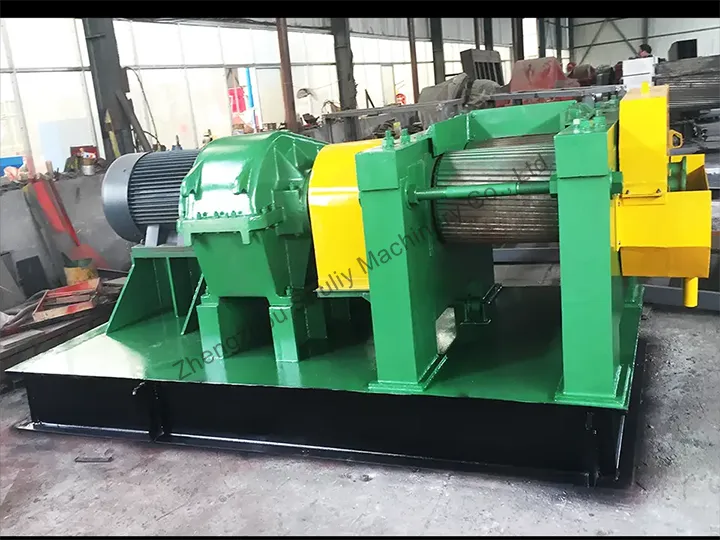

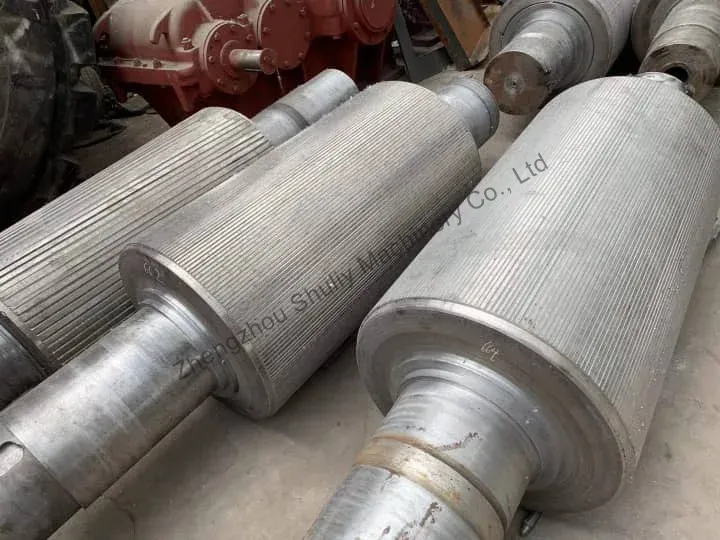

- Adopting a double grooved roller design, the roller is made of 5Cr6MnMo alloy steel, with high hardness and long life.
- The roller speed ratio is 1:2.5, which has a better crushing and grinding effect for tire recycling.
- Shuliy rubber crusher machine contains 8 rolling bearings, which run more smoothly.
- It has two magnetic separations and two screenings to ensure that the rate of rubber powder is above 99%.
- We provide customization services, such as voltage, screen, machine color and so on.
Technical parameters of rubber powder making machine
As you can see from the parameter table, our tire recycling lines are available in different configurations. Depending on the size of the final product that the customer wants, we can equip different models of rubber powder machines. Different models, different product sizes, and different outputs are shown in the table below. It’s for your reference when choosing a rubber tyre powder machine.
| Model No. | Capacity(kg/h) | |
| SL-350 tire recycling line | 10 mesh(2.5mm) | 250-300kg/h |
| 20 mesh(1.25mm) | 180-230kg/h | |
| 30 mesh(0.83mm) | 150-210kg/h | |
| 40 mesh(0.63mm) | 80-120kg/h | |
| SL-400 tire recycling line | 10 mesh(2.5mm) | 400-500kg/h |
| 20 mesh(1.25mm) | 300-350kg/h | |
| 30 mesh(0.83mm) | 240-280kg/h | |
| 40 mesh(0.63mm) | 150-175kg/h | |
| SL-450 tire recycling line | 10 mesh(2.5mm) | 500-600kg/h |
| 20 mesh(1.25mm) | 400-500kg/h | |
| 30 mesh(0.83mm) | 350-450kg/h | |
| 40 mesh(0.63mm) | 200-250kg/h | |
| SL-560 tire recycling line | 10 mesh(2.5mm) | 900-1000kg/h |
| 20 mesh(1.25mm) | 600-700 kg/h | |
| 30 mesh(0.83mm) | 450-550kg/h | |
| 40 mesh(0.63mm) | 300-350kg/h | |
| SL-560D tire recycling line | 10 mesh(2.5mm) | 1500-1600kg/h |
| 20 mesh(1.25mm) | 1200-1300kg/h | |
| 30 mesh(0.83mm) | 1000-1100kg/h | |
| 40 mesh(0.63mm) | 800-900kg/h | |
| SL-660 tire recycling line | 10 mesh(2.5mm) | 2100-2300kg/h |
| 20 mesh(1.25mm) | 1600-1700kg/h | |
| 30 mesh(0.83mm) | 1200-1300kg/h | |
| 40 mesh(0.63mm) | 900-1000kg/h | |

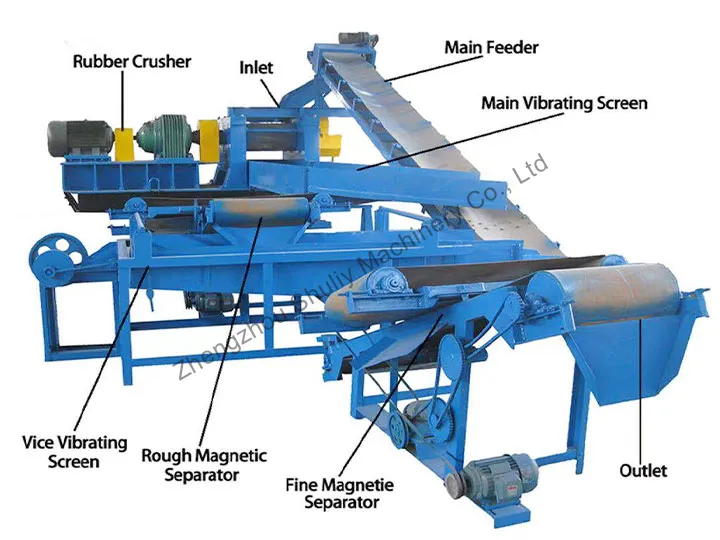

Structure of rubber powder grinder machine
Our rubber powder making machine consists of inlet, rubber crusher, vibrating screen(two), magnetic separator(two), outlet, etc. Its structure is compact, with easy operation and maintenance.

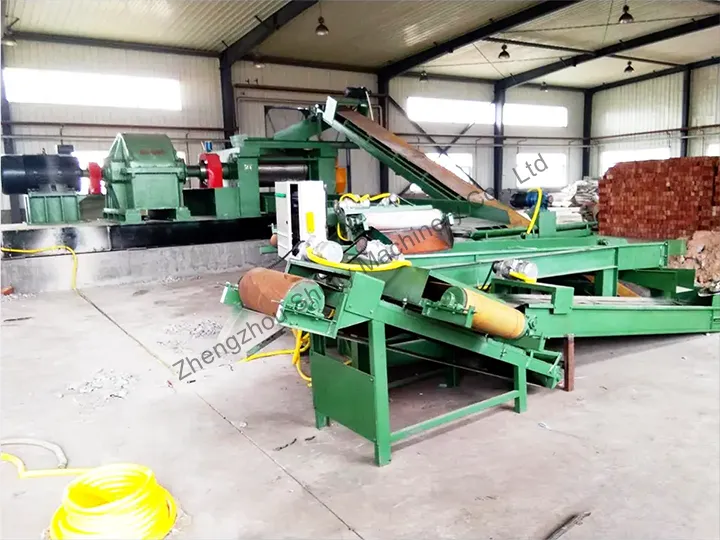

How does the rubber powder machine work?
After understanding the machine structure, the next to see how the rubber grinding machine works.

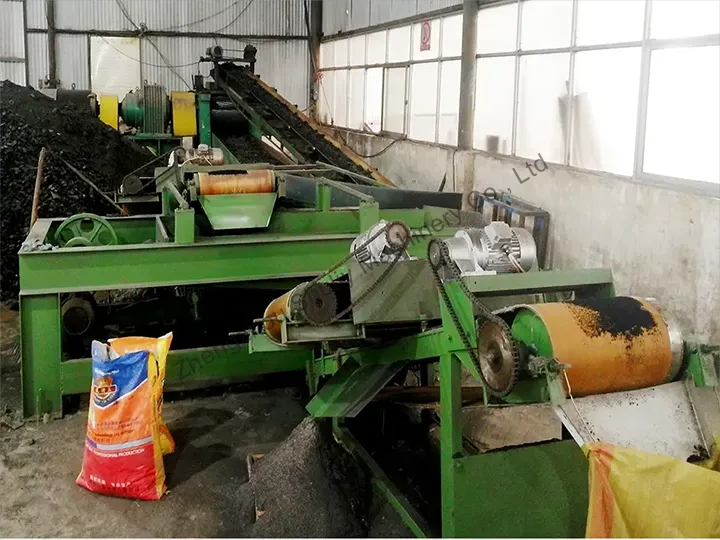

Tire blocks enter the crushing chamber through the conveyor belt. The tire blocks are crushed into rubber powder under the grinding of the high-speed rotating roller. After two screenings and two magnetic separations, the rubber powder, steel wire and nylon fiber will be separated.
The whole process is fully automatic and the screens can be matched to the customer’s needs for the finished product.
What’s the rubber crusher machine price?
The price of this tire rubber grinding and screening unit will vary according to different models, high and low configurations, production capacity and whether customized voltage and tool material are required. For example, SL-350 and SL-400 have different configurations and machine prices depending on the customer’s finished product size and system requirements.
If you want the specific price of the rubber powder machine, please contact us. Tell us your needs(such as rubber powder size, output, and budget), and we will provide you with an accurate quotation and a one-to-one recycling solution configuration.
Why choose Shuliy rubber powder machine?
As a professional recycling machine manufacturer and supplier, we have the following advantages that attract customers:
- Rich export experience with more then 50 countries
- Support multi-language service, OEM customization
- Provide on-site debugging + technical guidance + a full set of tire recycling solutions
Contact us now for a quotation!
We can also provide a complete set of tire recycling equipment, including: tire circle cutter, strip cutter, block cutter, steel wire separator, rubber powder machine and so on. Please get in touch with us for a free tire recycling solution and quotation!
