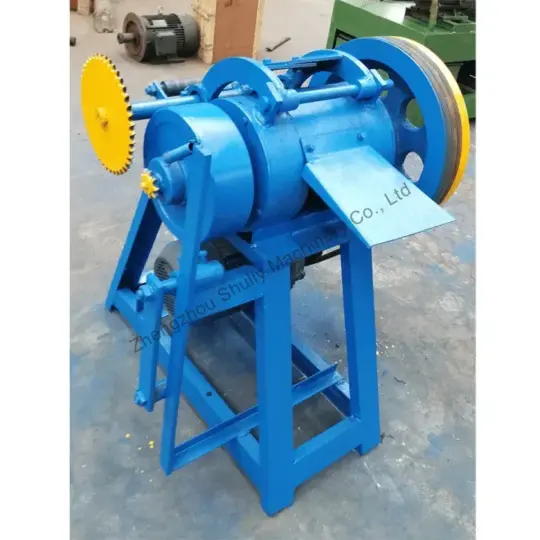

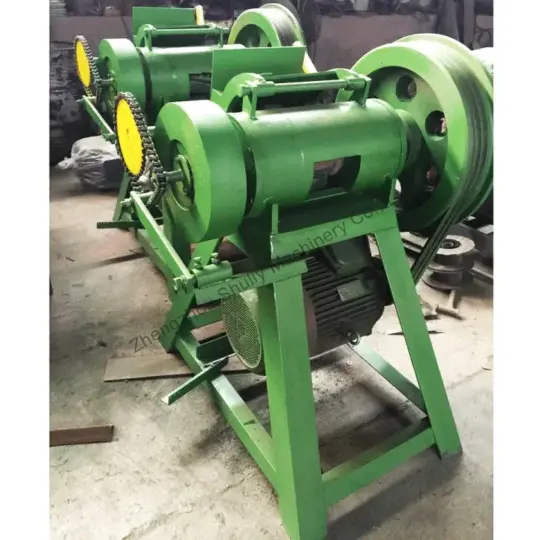

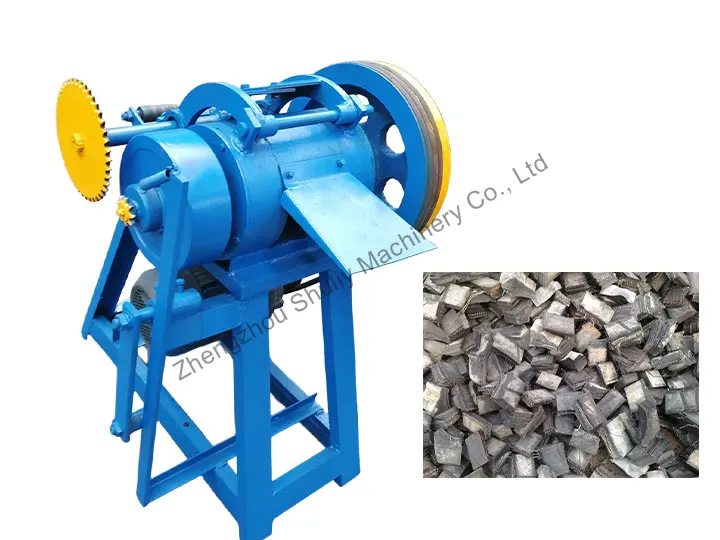

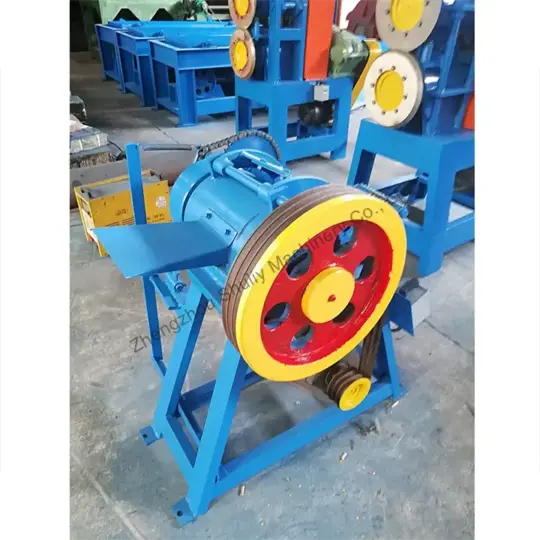

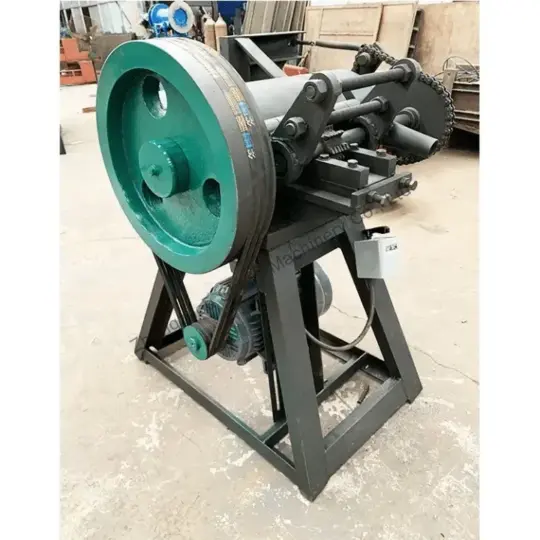

Shuliy tire block cutting machine is used to further cut the rubber strips into small pieces of 3×5×6cm or 5×5cm for subsequent crushing. It has a processing capacity of 800-1500kg per hour, and always works with the tire strip cutting machine.
This tyre block cutter has accurate cutting size, convenient feeding, and high efficiency, making it less likely to damage the subsequent crusher drum. It’s popular in the tire recycling industry. If you want more details, please contact us at any time!
Core advantages of rubber tire block cutting machine
- Its knives are made of alloy steel, wear-resistant, and support repeated grinding.
- This tyre block cutting machine can cut the strip of waste tires into standard sizes (e.g., 3×5×6cm, 5×5cm), which greatly improves the processing efficiency of the downstream equipment and reduces energy consumption.
- The machine has the ability of high-efficiency shearing, and the cutting is completed in one go without repeated processing. The production capacity can be up to 1500kg/h.
- The clearance between the movable knife and the fixed knife is best kept at about 0.1mm so that the steel wire can be cut off smoothly.
- Our tire chopping machine is reasonably designed, with uniform speed, high shearing force, low energy consumption, easy to operate, safe and reliable.
Technical parameters of scrap tire block cutter
Our tire block cutting machine is now available in regular and upgraded models. Different types are equipped with different motors, outputs and finished product sizes. Please take a look at the detailed parameter table for reference.
| Type | QKJ-358 Common Tire Block Cutter | Updated Tire Block Cutter |
| Motor power | 5.5kw | 18.5kw |
| Capacity | 800kg/h | 1500kg/h |
| Specification of cutting slice | 3*5*6cm | 5*5cm |
| Size(L*W*H) | 1.0*0.8*1.4m | 1.3*1.1*1.5m |
| Weight | 800kg | 1200kg |
Structure of waste tyre block cutting machine
The equipment consists of frame, motor, transmission mechanism, balancing device, two movable knives, one fixed knife and compression gear.
Why use tire block cutting machine in the waste tire recycling line?
In the waste tire recycling process, tires are processed from the whole tire → cut circle → cut strip → cut block → crushing → screening → rubber powder. The role of tyre block cutting machine is:
- Improve the crushing efficiency: after cutting the rubber uniform size, conducive to the subsequent crushing of uniform feed.
- Protection of host equipment: prevent large rubber strips from directly entering the crusher and damaging the cutter and roller.
- Enhance the production capacity of the whole rubber powder production line: more accurate cutting blocks, more continuous feeding, and the overall efficiency significantly improved.
- Adapt to the needs of automatic recycling lines: lay a good foundation for the intelligent operation of the entire line.
Shuliy: one-stop solution provider
As a machinery manufacturer with more than ten years’ export experience, Shuliy Machinery can provide a complete set of waste tire recycling equipment for global customers. Shuliy Machinery can provide a complete set of waste tire recycling equipment for customers all over the world, including:
- Tire ring cutter, tire strips cutter, tire block cutting machine, rubber powder crusher, tire steel wire separator, rubber powder production line, etc.
- Support OEM customization, overseas commissioning, video instruction, supporting drawing support.
- Support multilingual communication services (English, Spanish, French, etc.) to provide customers with a more professional and smooth purchasing experience.
Feel free to contact us for a tire recycling solution with a great offer! Simply provide the tire type, target capacity and site conditions, and we will recommend the most suitable equipment configuration for you.
